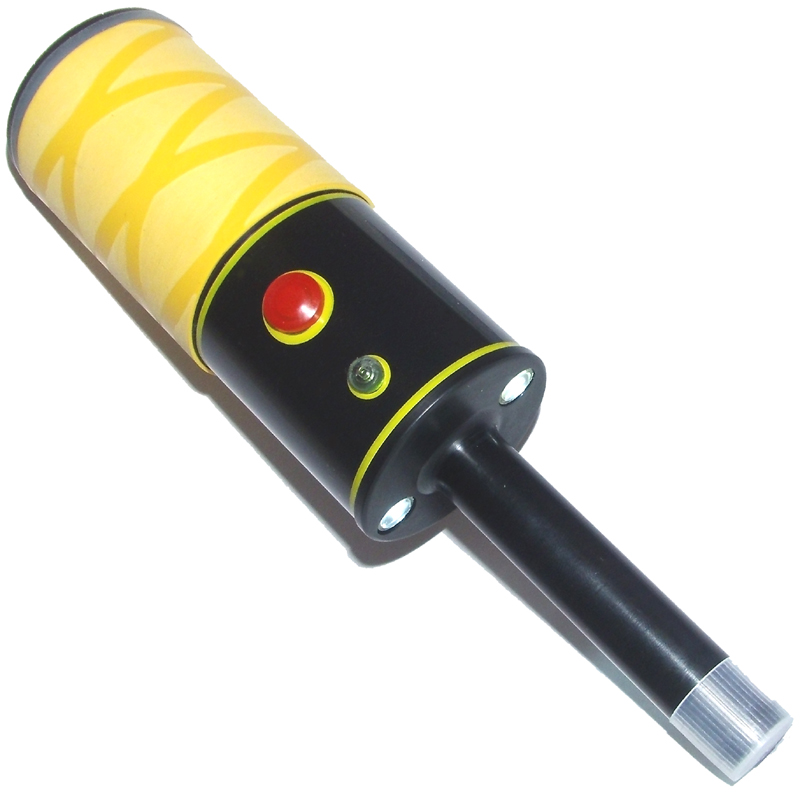

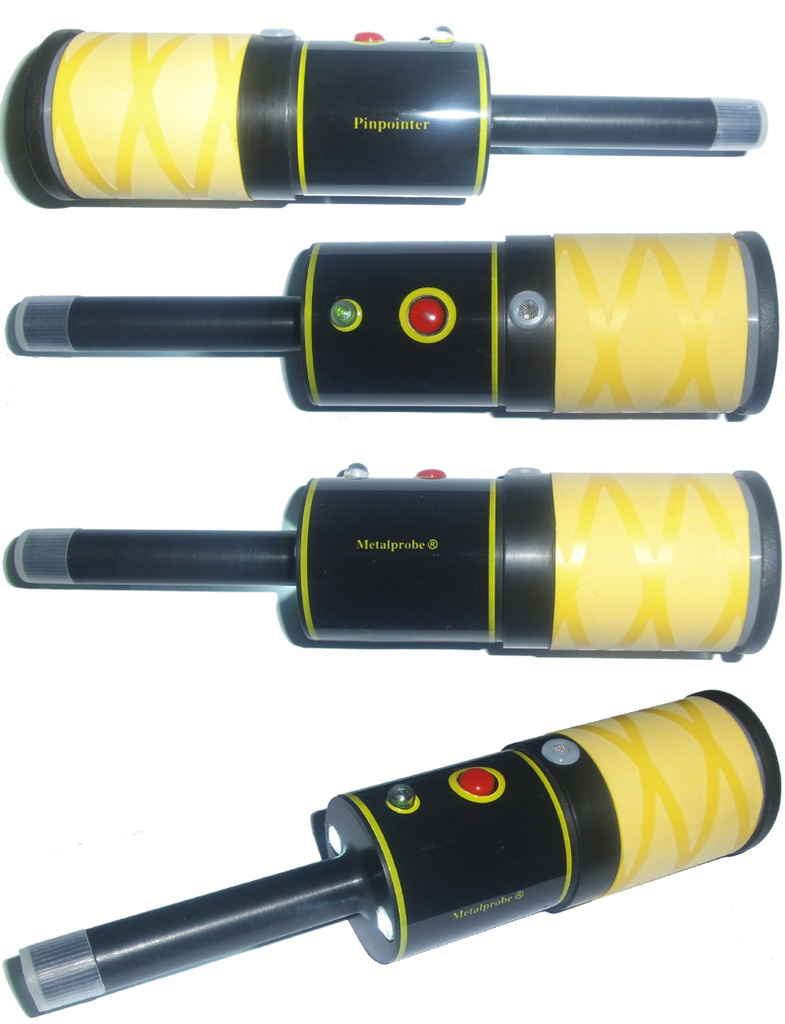

Pinpointer - Waterproof Metal probe
Waterproof pocket mini 7 inch metalprobe multifunction designed to precisely pinpoint metallic ( ferrous and nonferrous ) objects during treasure recovery and Gold Hunting. Audible with LED and silent vibration alarms to indicate the presence of metal objects.
With a pinpointing tip ( more sensitive than ) with side-scan capability. It is very effective in easily detecting even the smallest of ( grain size ) metallic objects in a wide variety of hunting conditions.
Double LED flashlights assists in dark and low light conditions adjustable brightness.
Sensitivity can be adjusted by fingers ( adjustments of potentiometer voltage ) you can detecting dim. 3-5 mm gold kernel.

Metalprobe is intended for use in conjunction with a ground search metal detector to aid in the recovery of metallic targets. one body 0.50 inch tip probe can dig in mud and you do not worry about broken !

Model: MP2016A
It is an indispensable tool to:
  1. Speed target recovery
  2. Prevent digging large holes
  3. Accurately find small objects
  4. Underwater or Underground hunting
  5. Locate nails and metal wall studs in homes
  6. Identify multiple objects in near proximity
  7. Search in tight interior areas such as walls and ceilings
  8. push / release switch button can send SOS distress signal The lights can be found 4 KM away at night.
Specification Metal Probe - Treasure ( Gold grain ) Pinpointer
Case construction: One body High impact ABS
Operating Temperatures: -30°F(-35°C) to 150°F(68°C)
Operating Frequency: 10.5kHz
Indicators:
1. Buzzer alarm ( waterproof model: Min sound output dB 70 )
2. Silent / Vibration ( Motor rpm 15000 ) 		3. LED Alert Lights Green: Power ON
Red: Alarm condition
Controls: Power switch Operation( ON ⇒ Buzzer ⇒ Vibration ⇒ LED flashlight ⇒ OFF )

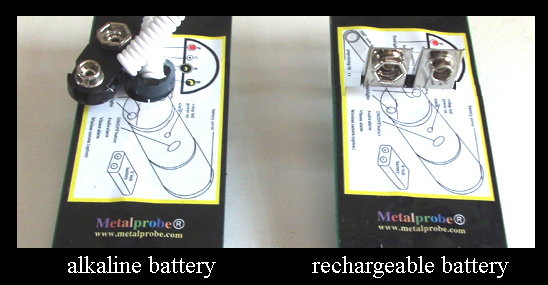

Battery: 1 x 9 volt block alkaline or rechargeable Li-ion  battery 220 - 580mAh
provides up to 10 - 40 hours of normal operation. on each 2-3 hour recharge

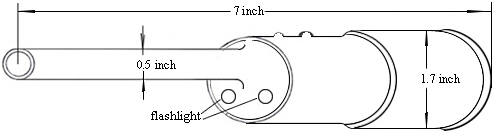

Dimensions: Length: 7" ( 180mm )
Diameter: Probe end: 14mm ( 0.55 inches )
Handle End: 45mm ( 1.69 inches)
Thickness: 0.15 inch (3.5mm)
Scan Area: 3.14" ( 80 mm ) long; 360° plus tip
Net Weight: 118g ( without battery )
Packing: 90PCs/carton, Carton size: 610 x 510 x 350 mm, Gross weight: 28KG
Model: MP2016C

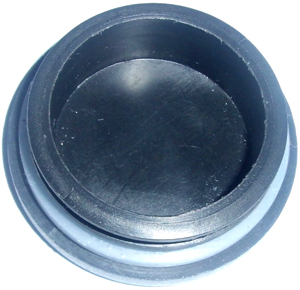

Handy Operational Probe - it has a easy push in cover, after sensitivity adjustment of brightness adjusting, just put the cover into the probe body

the probe has audio hole and it has be covered by a layer of metal mesh to prevent dust and rain into the body
Model: MP2016A Model: MP2016C
Model ID LED
alarm 		Buzzer
alarm 		Vibra
alarm 		Switch
On/Off 		LED Flashlight
( beam - feet ) 		Sensitivity Waterproof / Underwater
( for your choice ) 		buzzer
( dB )
0.6 inch gold coin 0.1 inch gold grain
MP2016A Yes Yes Yes Yes 30 on land 1.2 tip
1.5 side 		0.03 tip
0.05 side 		On land detecting only
( it can be used in rain ) 		35
MP2016C Yes Yes Yes Yes 30 on land 1.2 tip
1.5 side 		0.03 tip
0.05 side 		On land detecting only
( it can be used in rain ) 		75
Operating Instructions:
Before detection, sensitivity must be tuned for maximum sensitivity-critical point, sensitivity adjustment and setting can help you to detecting more deeper and accuracy, to do so, Please press On/off button to power on and follow the instruction bellow:
  1. Switch the detector on by pressing the power button while holding the detector away from any metallic objects. To avoid canceling out the target, do not turn on the MP while it is adjacent to the target. The Green Power LED will illuminate and one brief audio beep will occur, indicating the MP is ready for use.

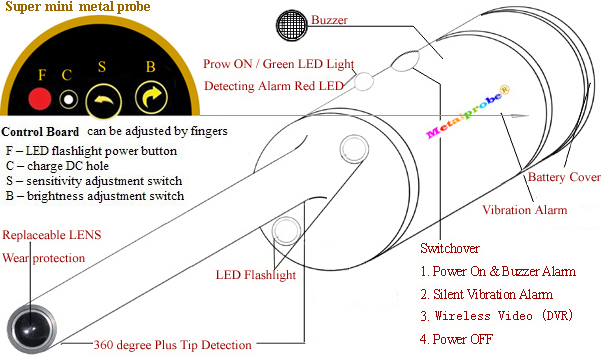

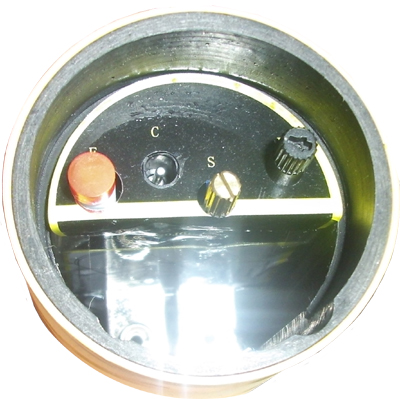

  2. Sensitivity Adjustment: find the sensitivity yellow copper button S on the Control Board turn left for max depth highest sensitivity and turn Clockwise is for less sensitivity Note: Different media,you need adjust sensitivity when you hunting in different place eg.
Air Water Sand Mud
  1. When you detecting in water:
    put probe 1 inch in water and adjust Sensitivity before hunting

  2. When you detecting in sand:
    put probe 1 inch in sand and adjust Sensitivity before hunting

  3. When you detecting in mud:
    put probe 1 inch in mud and adjust Sensitivity before hunting
All metals will be detected including ferrous and non-ferrous.
Platinum Distance Ring Distance Nugget Distance Bowl Distance
Tip detecting
> 0.8 inch
Side detecting
> 1.2 inch 		Tip detecting
> 0.8 inch
Side detecting
> 1.2 inch 		Tip detecting
> 1.2 inch
Side detecting
> 1.6 inch 		Tip detecting
> 2 inch
Side detecting
> 2.5 inch
You should use Metal Probe to precisely locate your metallic target.
  1. As you move the tip of the probe closer to the target object, the detector's vibrations or audible beeps will be warning.
  2. Side-Scan recovery: One of the key features of the probe is its side-scan detection ability.
    This feature allows you to quickly search a large area. Hold the probe on its side, flat against the target and quickly scan back and forth.
    Once the general location of the target is known, use the tip of the MP to precisely locate the target.
  3. Water recoveries: Another key feature of the probe is that it is fully waterproof
    This allows you to search in rain and wet areas without concern of damaging your probe.

    The Green LED Light will illuminate when the probe is on and this light will remain on until the power button is pressed again to switch off the unit.
    This mini flashlight feature is useful when operating in low light situations.
Battery Charging

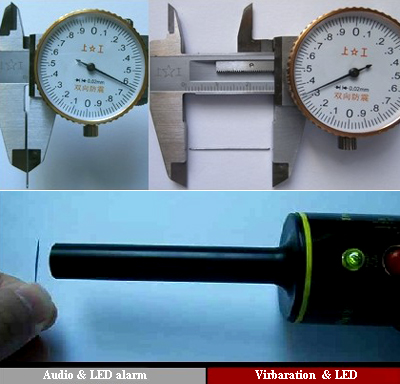

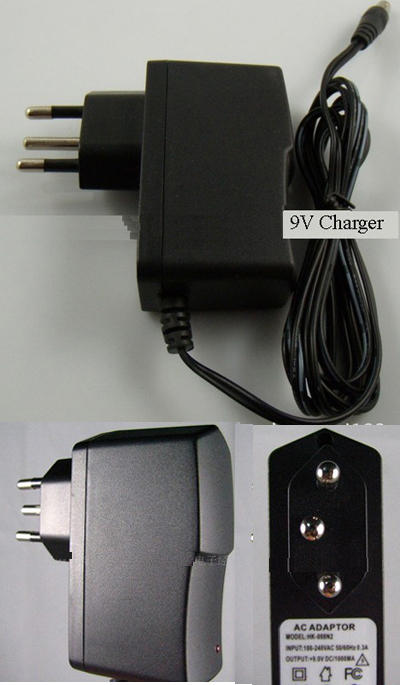

When the battery becomes low, the LED light will be dark. It indicates that the detector's 9V battery should be charged as soon as possible by unscrewing the battery cover and use Adaptor or ( Solar Charger) only 2 hours the battery will full of power and hand-tighten the battery cover. It can detect needle dia. 0.023 inch / 0.6 mm

Cleaning Your Probe

Metalprobe meets IEC 60529 IP 66 dust and water-resistancy standards. you can search mudday and wet areas without concern of damaging your probe.

MP2016A is water resistant, however, avoid spraying water directly into to speaker grill and do not submerge the entire detector in water

To remove dired dirt, mud or other debris from your Metal Probe, simply hand-clean it with soap and water, Rinse with running water.

Do not use any type of abrasive or chemical cleaners.
Do not affix metallic labels (or any material that might cause the detector to alarm) to the detection area of the metalprobe.

Doing so might cause an imbalance within the detection field and thereby reduce scanning effectiveness. We hope metal probe can bring you the happy hunting trip......

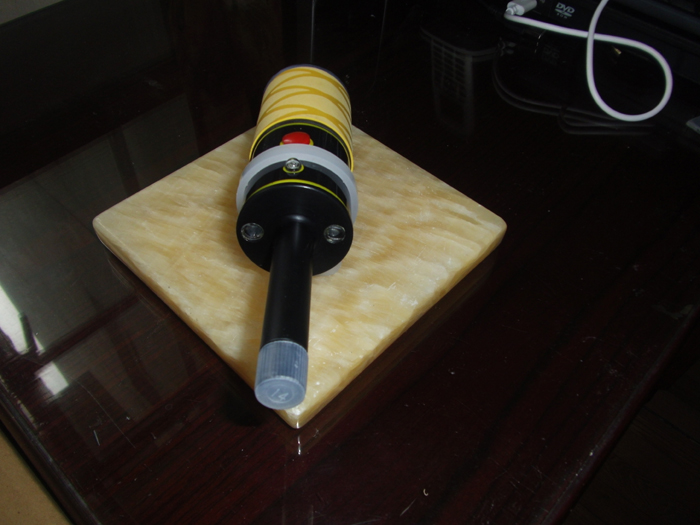

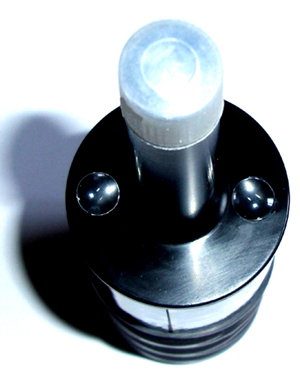

Double LED flashlights Single LED flashlight ABS Cover The cover has tighten slot
do screw tighten with coin
do not worry about broken

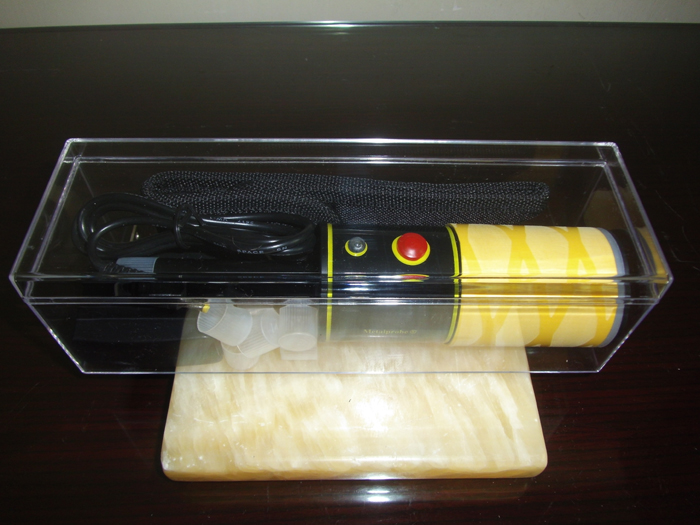

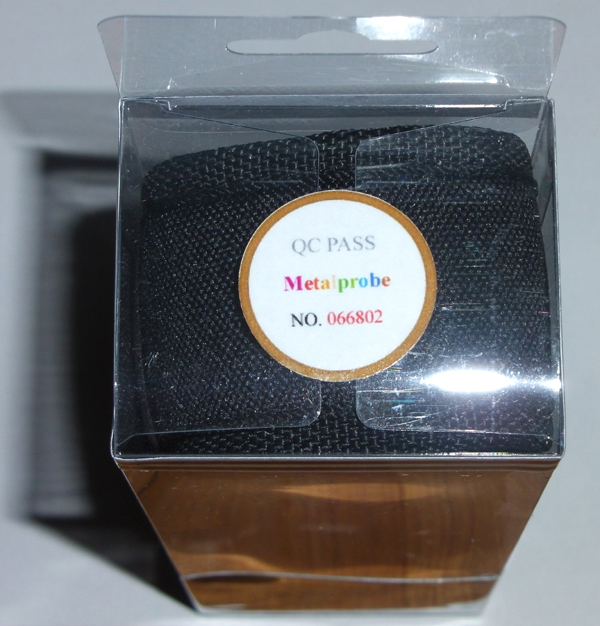

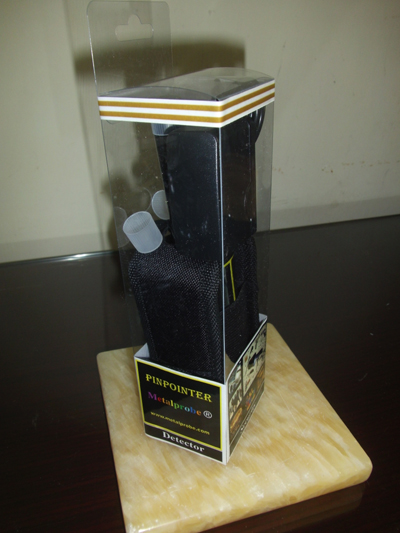

Both box and probe have been marked with serial number. Do not remove any label and sign for after sale service

Warranty details:
2 years Limited (Items excluded are batteries, shipping costs and damage due to abuse, corrosion, modifications).
Warranty details:
  • 2 years Limited (Items excluded are batteries, shipping costs and damage due to abuse, corrosion, modifications).
  • Please read owner's operation manual books click
  • Every probe has been marked with serial number separately so do not remove any label and sign on the parts
