MP2016A & MP2016C Night use mini pinpointer detector

World smallest pocket metal probes for gold grain hunting

Rain working

Single-button operation for Power, Audio,Vibration and Flashlight.

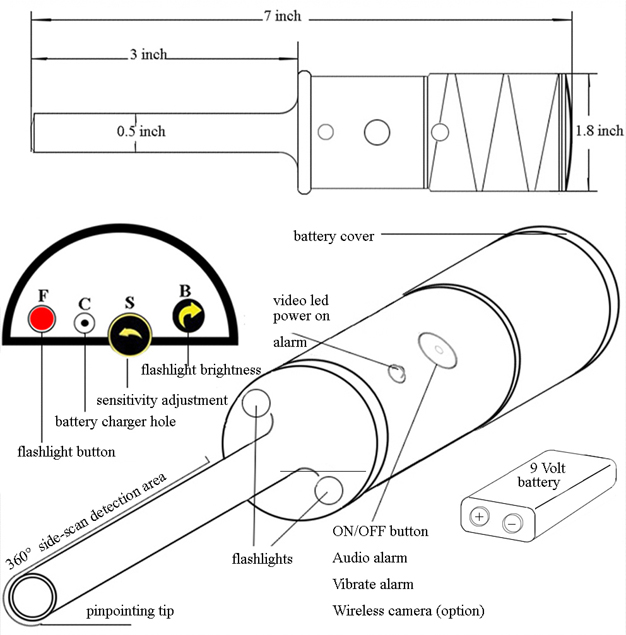

Dimensions:
  • Length: 7" ( 18 cm)
  • Diameter : 0.6"/1.5cm to 1.8"/4.6cm
  • Thickness: 0.12"/3mm to 0.3"/8mm
Low Battery Alarm: When the battery becomes low, the detector will sound an alternating dual-tone alarm and 2 LED flashlights will be darken so replace the 9V battery as soon as possible.

Battery Replacement:
Simply rotate the battery cover counterclockwise to remove and clockwise to tighten by hand. To properly install the 9V battery, match the larger battery terminal to the larger opening in the compartment.
alkaline battery rechargeable battery
All metals will be detected including ferrous and non-ferrous. when a target is detected, the probe will produce an audio or vibration alert

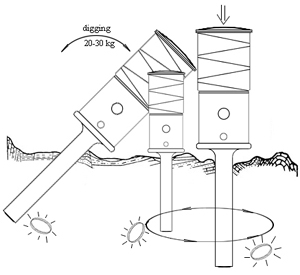

Using the metal probe as a digging or prying tool in sand and mud area only. Metalprobe shell thickness is over 4 mm. metalprobe is designed for anyone intended to be used with excessive force. Accessories includes:
  1. Charger

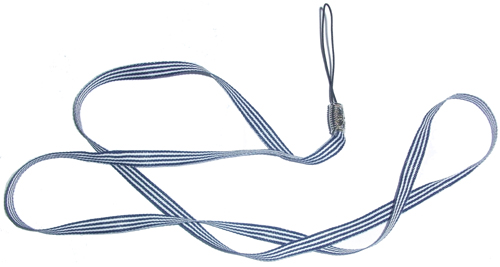

  2. lanyard
  3. EURO plug
  4. testing card

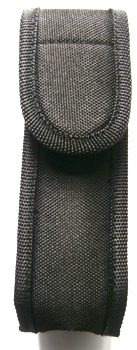

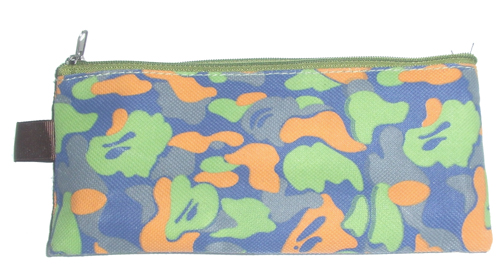

  5. belt holster

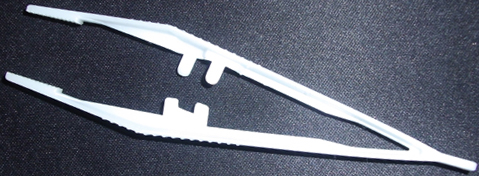

  6. PVC Tweezers

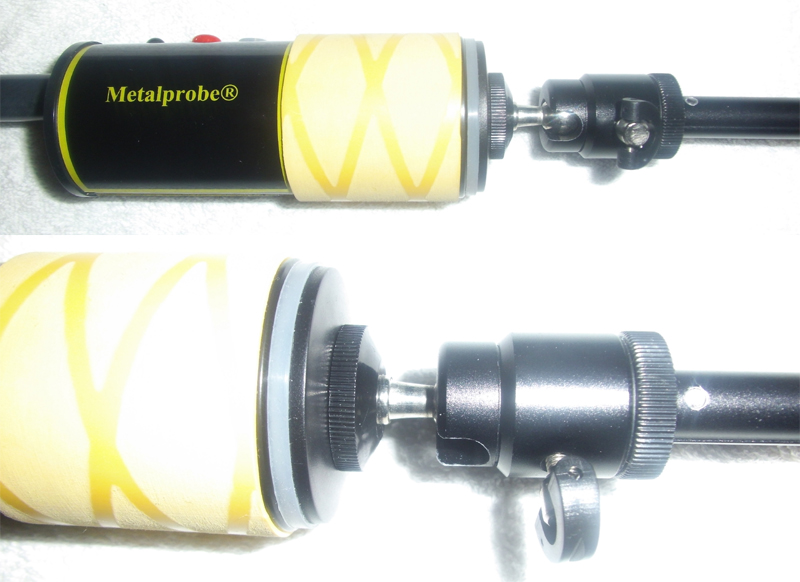

  7. nylon bracket
  8. 9PCs tip caps
  9. silicone grease

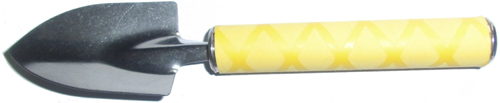

  10. steel stainless shovel

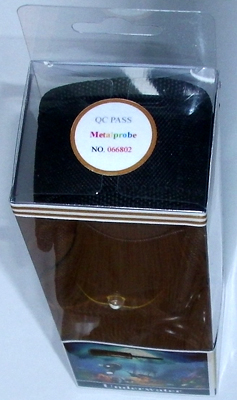

  11. transparent PVC gift box

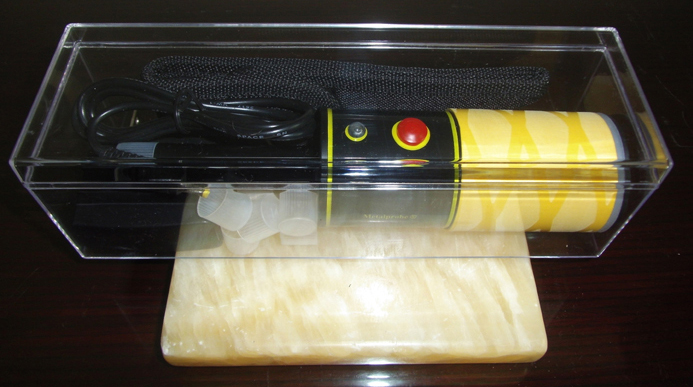

    Acrylic Box ( option )

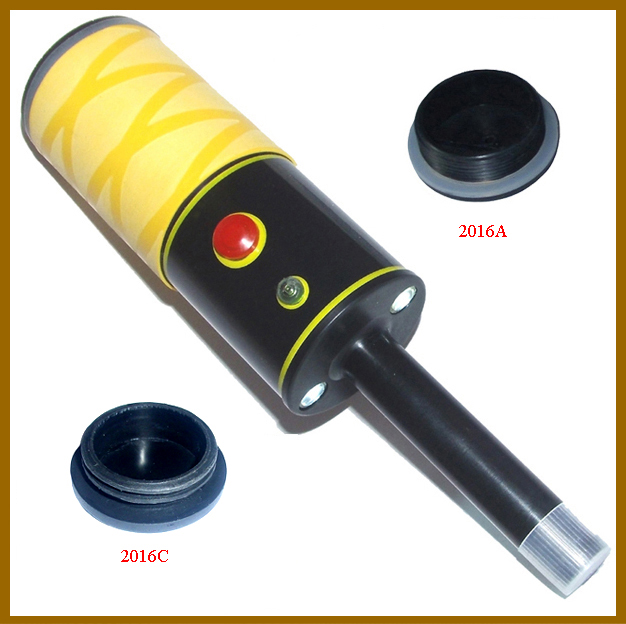

Model:
MP2016A & MP2016C is for water use, do not exceed 30 feet (9 meters) depth. Make sure the battery cap threads are free of sand, sediment, etc. and that O-ring is periodically lubricated with silicone grease to maintain a tight seal.

Underwater probe battery cap material is copper, so the probe will not float when you diving


To remove dried dirt, mud or other debris from the unit, simply hand wash it with soap, water, and a soft cloth. Do not use any type of abrasive or chemical cleaners which could scratch or erode its surface.

Double LED flashlight for low light uses.

can be no shadow on one side, this will help you hunting easy in darkness.
flashlight can be adjusted brightness by one independent brightness switch.

WARRANTS:
We warrants to the original consumer purchaser that your Metalprobe will be free from defects in materials and workmanship under normal use for two years (24 months) from the original date of purchase.

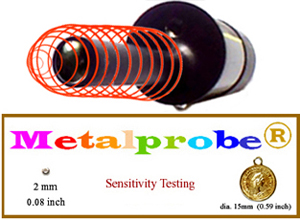

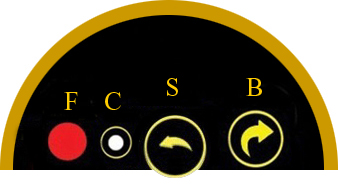

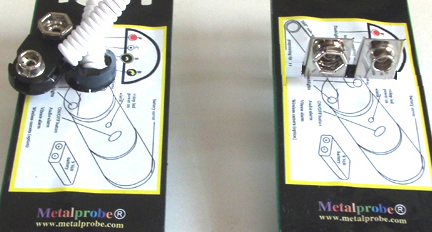

Operating Instructions: Before detection, sensitivity must be tuned for maximum sensitivity-critical point, this will help you to detecting more deeper and accuracy, Please press On/off button to power on The Green Power LED will illuminate, open the cover and put probe 1 inch in mud or sand or water then find yellow copper button S on the Control Board turn left for max sensitivity and turn clockwise is for less . adjust sensitivity for different media ⇓
Air
Water
Sand
Mud
It can be pushed into mud without excessive force














Please fulfil warranty card and email to us
Record Your Metalprobe:
Date of Purchase:
Dealer Name/Address:
Serial Number:

+: metalprobehotmail.com
*: metalprobetradesaon.net
URL: https://tradesalon.net/metalprobe.html

Allow approximately one week for technicians to examine and repair your instrument.

International customers outside the Hong Kong must contact the retail outlet where their product was purchased to arrange for after sales service

If no reply or can not get after sales services from dealer please contact us
Model ID waterproof ON/Off button alarm
(one button switch)
Flashlights Sensitivity

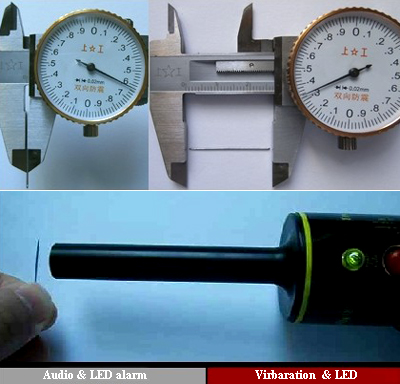

one coin

Detection
Dimensions One body shell 9V battery Cover Buzzer voice hole
rain underwater audio video vibration brightness
adjustable
tip side TIP and
360°area
length diameter material thickness alkaline recharge material type
MP2016A × independent
black switch
3mm
1.2 inch
4mm
1.5 inch
7inch
18cm
0.6"/1.5cm

1.8"/4.6cm
ABS 3~7mm ABS Screw
MP2016B 30 foot
9 meter
POM 3~9mm copper Screw ×
MP2016C × × ABS 3~7mm ABS Plug
