MD1001	MD140	MD3003D	MD500	MD150	MD0025	MD80

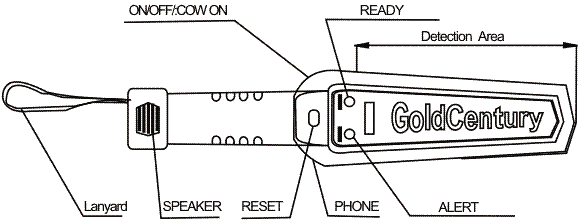

MD3000A	MD5	MD200	MD300	GC1001	MD8	MD3003C

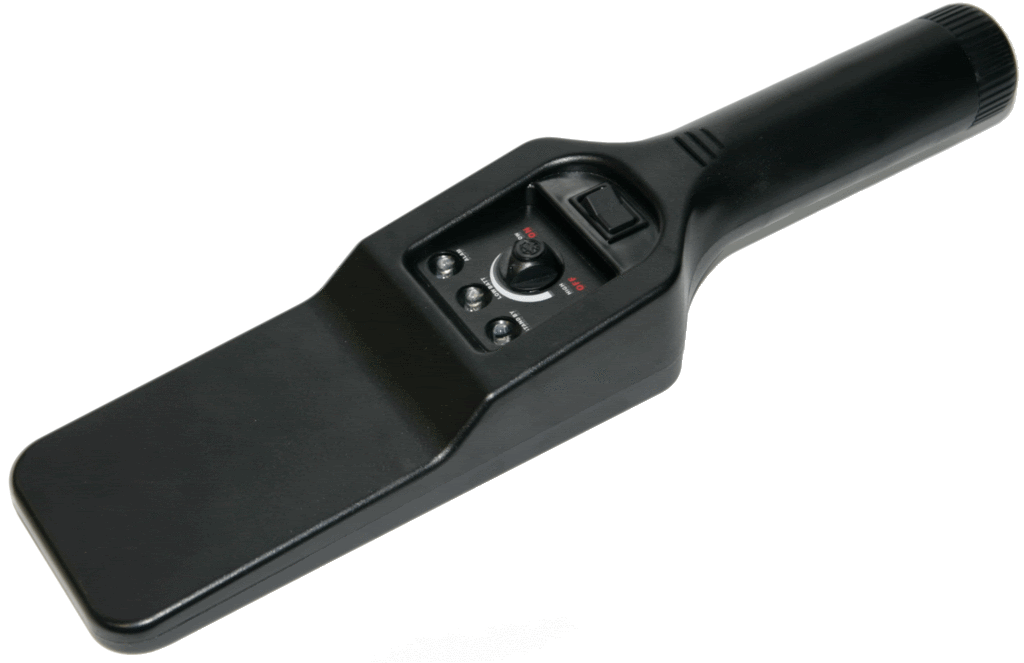

The high sensitivity MD150 Hand Held Metal Detector is a high sensitivity device designed to detect magnetic and nonmagnetic metals and accurately detects weapons, detonators or other small metal masses. Which designed to conduct effective searches of individuals and items such as clothing, baggage, correspondence, etc. Its ergonomic design enables rapid security screening and reduces operator fatigue.		1. detecting area 2. control button 3. battery compartment 4. recharge / earphone
Sensitivity adjustable by stepless knob Optical alarm and earphone silence mode	MD150 High Sensitivity Detector Features High sensitivity Rechargeble / earphone jack Very high reliability, Self-calibrating Adjustable sensitivity by stepless knob Long Battery Life and Fast Battery Charger Optical, Acoustical and Earphone silence mode Detection of both Magnetic and Non-Magnetic Metals Three-position switch with selection of visible alarm or audible Built-in buzzer: High intensity coniniusly acoustic alarm, Indicator lamps for Power on (green light) Alarm (red light) low battery charge (amber light) Battery life in continuous operation: With NiMH batteries: 50 hours maximum; With alkaline batteries: 150 hours maximum Simultaneous optical and acoustic alarm.

Click for large photo

Technical Specifications Power Supply: HP140V: 9V dry battery or 9V NiMH with contact charger HP140VR: 9V NiMH with BC140F inductive charger Operating Temperature -15C to 65C (relative humidity: 0 to 95% ) Materal: In grey, shock-resistant Polycarbonate and ABS blend Storage temperature: -13F to 158F (-25C to 70C) Relative humidity: 0 - 95% without condensation Black, shock-resistant ABS Overall dimensions: 13.39 × 3.15 × 2.17 inch, 340 × 80 × 55 mm Weight: 0.80 lbs (0.365 kg); (including batteries) (0.88 lbs/0.40 kg for rechargable models) Options: Optional earpiece output for audible alarm Adoptor Charger - for a single 9V NiMH battery Carry bag Certification & Conformity Conforms to the international standards currently applicable for Electrical Safety and Electromagnetic Compatibility (EMC) and to applicable EC regulations

MD800

Specifications A25cent coin: 65mm Iron pipetube Ø20mm: 120mm NOTES Avoiding knock heavily Avoiding interference, the distance between The detectors should be more than one meter Turn off after operation Take out the battery if non-use for a long time Environment: -10°C~50°C Current: <8mA Frequency: 25KHz Tuning: Automatic Alert: Audio Power: 6F22 9V¡Á1 Size: 392mm (Operation) 258mm (storage) Weight: 230g (without battery) This detector is applicable to the safe check that the airport, station, wharf, jail, maritime customs, public security official, border defense. . . etc. protect the section, the quantity check of the medicine, food, the business system; And the examination ( such as the gold and silver decoration factory) and important places of the precious metal, such as safe check of etc. of the athletic field

	Battery Replacement Open the rear cover Place the new battery in the groove Cover the battery cover again		Sensitivity Adjustment To increase the sensitivity turn the knob in clockwise. On the contrary, to decrease the sensitivity.
	Operation Turn on the detector, a unique tone Beep indicates that the detector is already for operation. ( if the beeper whistles or the alarm indicator lights continuously, That indicates battery-replace should be taken) A unique tone beep indicates the exist of metals while sweeping. For detecting the under-ground objects, the search head being parallel to the ground is Recommended Package: 20PCs/Carton, Carton Size: 56×32×29 cm, Gross Weight: 6.5KG

60 mm 2.5inch 140mm 5.5inch 120mm 4.8inch 180mm 7 inch 400mm 16inch 400mm 16incn

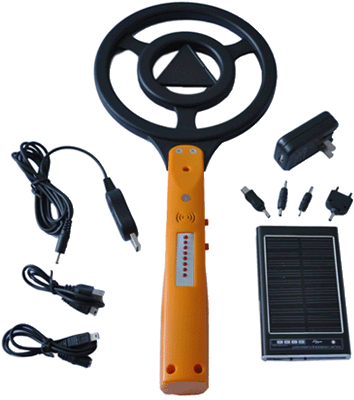

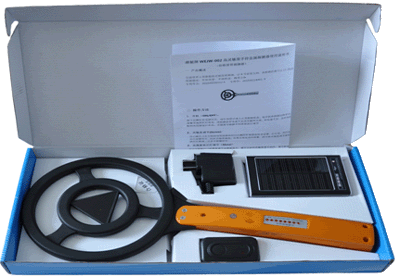

ID MD500 Where to use: Police, Army & Security Exhibition & Entertainment Explosive-proof security Package 20PCs/Carton Unit Weight: 0.3kg Dimensions: 415×180×30 mm Gross Weight: 17kg Certification: CE and RoHS.

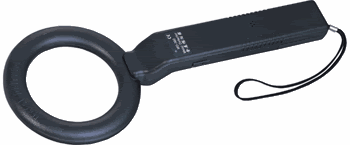

MD300 Function features: It features simple operation, exquisite design, convenient conservation and low failure rate Highly sensitive, it can easily detect pin-sized metal articles (or even smaller metal articles) Its sensitivity can be adjusted according to the on-site requirements Indication of low battery voltage (LED light is always on) It is praise worthy that its price/performance ratio is higher than other products of the same category There are two kinds of alarms, including sound & light and vibration Product parameters: External dimensions: Length 395 mm×140 mm Grosst weight: 8.5kg/carton, 20/box Packaging dimensions: 52.5 cm × 31.6 cm × 37.8 cm Working power supply: 9 V battery Alarm modes: sound & light, vibration (switch) Package: 20PCs/carton, Carton size:54×38×32cm, Gross Weight:7. 4 kg

Function features: Simple and convenient operation Fairly low consumption of battery Extremely high detecting speed Extremely high accuracy and sensitivity Light: LED flashlight (momentary switch) The battery management system continuously monitors the deficiency of power and voltage. Most adapting to the man's hearing difference, it will generate different alarm tones depending on the size and distance of metal. The alarm sound will last when finding metal and continuously lock its correct position. The probe will give an alarm easily when a pin is 35mm to it. GC1001

Product parameters: Operate Frequency 95KHz ( high sensitive ) External dimensions: Length 40×14 cm Working power supply: 6F22ND 9 V battery (alkaline battery, rechargeable battery) Alarm modes: Simultaneous sound and light alarm Unit gross weight: 0.5 KG/PC Packaging dimensions: 20PCs/Carton, 43×21×45cm Gross Weight: 9kg/Carton

	Function features: It features advanced structure design concept, unparalleled streamline shape rich in rhythm. It features large and even detection working area, super high sensitivity, simple and convenient operation. One need not adjust its detecting sensitivity by simply choosing the high or low sensitivity range. The sound & light and vibration alarm can be switched by one button. It handle has adopted the anti-slip technique. It has adopted the world advanced wireless transmission charging technology with self-dominated intellectual property right. Experts' comments: This model has thoroughly embodied aesthetics in its overall design and application. Conforming to the ROHS and CE standards of European countries, this model certainly will become a favorite of the high-end buyers. High Sensitive Handheld Metal Detector MD140
	Product parameters: External dimensions: 340×40×80mm Working power supply: 6F22ND 9V battery               (alkaline battery, rechargeable battery) The rechargeable battery is strongly recommended. Airproof capability: IP64 Alarm modes: sound or light alarm Product weight: 365 g	Anti-skid design knob- style batter cover	Dedicated Charger

MD8 LED light and alarm and Vibrantion Size L 26cm and 14cm ( coil Diameter ) H 4cm It has functions of open, alarm and buzzer/light auto-switch. It can be used in public security detection of airport, railway station, dock, prison, custom and frontier defense; quality detection of medicine, food and other commodities; examination of noble metal and detection other important fields, e.g. Packing Grosst weight: 10kg/carton, 20/box Packaging dimensions: 56.×44×33 cm

Characteristic Use and modulate simply; high sensitivity; alarming with buzzer and light. Low consumption, keep working over 40 hours If 6V of battery (9V should be used) is used, detection distance doesn¡¯t shorten. When the battery lacks, it will keep alarming. Dtection Distance Detecting pin: 10-30mm Detecting 64-type gun: 120mm Detecting 6 inch dagger: 130mm Detecting steel ball (dia 20mm): 90mm. (If Max sensitivity is set, it can reach 120mm) Sensitivity adjustment: If the detection distance cannot reach above standard or its sensitivity is exorbitant, (alarming when detecting human body without metal) you need adjust the sensitivity. You can push the battery cover to turn it up. After opening the device, you can adjust the potential screw on the circuit board with screwdriver. Turn it deasil for increasing the sensitivity. Turn it wider shins for decreasing the sensitivity. After finishing, cover the battery cover. Working power supply: 6F22ND 9 V battery (alkaline battery, rechargeable battery) 2×1.5V AAA batteries. Can be recharged on the 110V~220V AC, or with a USB jack connected with a computer, Charger is optional.

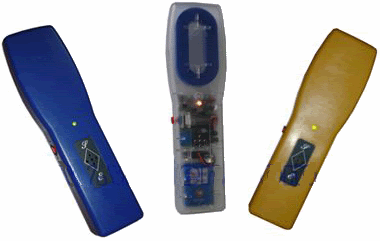

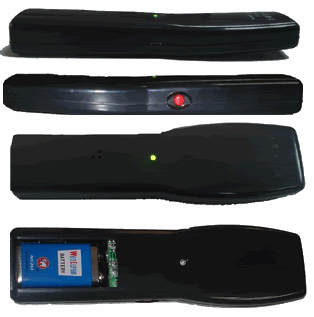

MD5 Handle mental detector has instruction of open signal by buzzer, sounds cleat. It can be used in public security detection of airport, railway station (especially in the detection of mental dangerous goods), dock, prison, custom and frontier defense, quality detection of medicine, food and other commodities; examination of noble mental and detection other important fields. Characteristics Use and modulate simply; especially adapt to detection of dangerous mental goods, eg: knives, dirks, machinery Take it easy; no influence in the sport. Low consumption, if 6V of battery (9V should be used) is used, detection distance doesn't shorten. When the battery lacks, it will keep alarming. Detection Distance pin: 10-20mm 64-type gun: 120mm 6 inches dirk: 60mm steel ball (dia 20mm): 50mm Operation Push the power button, when the green lamp is bright, it begins to work. You can detect the subject with detector, when mental is detected, alarm will send out and the red lamp will be bright. The opening-buzzer will keep 3-4 seconds which is ordinary. Sensitivity adjustment Strip the cell lid, use micro-screwdriver to adjust the screw above in electric potential equipment, turn right until the buzzer sounds, then turn left for about one or two circles. That's OK. Size of Unit: 18×5×2cm Weight: 200g/pc; Package: 50PCs/Carton Cartone: 400×310×250 mm Gross Weight: 10kg/CTN Color: Black/Blue/Translucent

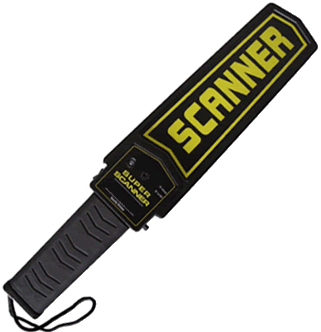

		MD3003D Features: Ultimate sensitivity: detects medium sized pistol from 9" distance; large knife from 6"; razor blades and box cutters from 3" distance; foil-wrapped drugs and tiny jewelry from 1". Self-calibrating: digital microprocessor technology eliminates the need for periodic sensitivity adjustments. Rugged, high-impact ABS case with reinforced coil compartment. Large 10" scan surface for quick, thorough scanning. No tools required to change standard 9V battery. Optional rechargeable battery kit available. Sharp audible alarm and bright red LED light and vibration indicates the detection of metal. Color LED indication: Green LED power ON indicator; Red LED LOW BATTERY indicator; Red LED ALARM indicator; Green LED RECHARGING indicator. Adjustable sensitivity knob. Warranty: 12 months, parts and labor

MD3003D Tech specification: Operating Temperatures: -37 to 70 Humidity: To 95% non condensing Audio Frequency: 2 kHz Warble Tuning: Automatic Indicators: Speaker; LED Alert Lights Controls: Power switch (On / Off); Sensitivity Adjuster Battery: Single 9 volt battery provides up to 60 hours of normal operation. Optional NiMH rechargeable battery provides up to 20 hours on each 12-hour recharge.	Dimensions: Width: 8cm Thickness: 4.2cm Length: 41cm Weight: 400g Accessory: Belt Holster (Free) Charger (Optional Accessory) NI-MH battery (Optional Accessory)
Applications: Airports, Sporting Events, Prisons, Nuclear Facilities, Correctional Facilities, Transportation Terminals, Public and Private Buildings, Loss Prevention, Schools, Corporate Security, Stadiums/ Concerts, Historical Landmarks

Introduction Super Hand Held Metal Detector is a high performance metal detector designed to meet the exact requirements of the security industry. The special design of it's detecting area makes this model has very high sensitivity. It is adopted PC+ABS for mould material, and has functions of durable material, fine workmanship, and easy carry. Typical uses will include body search for offensive weapons in crowd control, airport and border security, checking parcels and letters for metal objects and anywhere that hidden metal needs to be detected. This product adopted large scale integrated circuit (LSI). It can be charge by using 9V rechargeable battery. Has low battery indicator, LED with buzzer or vibration alarm. It is a good helper for security detecting. Function Elegant appearance, super sensitivity. Rigid for tough service, no damage through free dropping at one meter altitude. Large 10" scan surface for quick, through scanning. 2 kinds of alarm method: buzzer & LED alarm; vibration & LED alarm. Adjustable sensitivity, easy use Low battery light / Charge light gives a timely alert After installing chargeable battery (*Optional) in the battery compartment, you can charge the device directly. Battery The battery lid can be opened by pushing backward with thumb at the concave groove. Install the 6F22.S006P (9V) battery according to the anode and cathode signs on the battery lid. Cover with the battery lid and push forward firmly. Grasp the handle and press the button "Sound Alarm Switch" or "Vibration Alarm Switch", the power has been connected. Green "PW" LED turns on. After 1~2 seconds Self-calibrating, the detector under the normal sensitivity mode. The Search Area scans over a metal target, for example: a coin, you can hear the audio alarm from the Buzzer, and the red Alert LED turns on. When the detector turns on and is not detecting metal objects, you hear a durative audio alert, and the red "Low Battery Indicator LED" turns on. It indicates that your should replace the battery. For good detecting function and result, we suggest replace a new battery or charge it in time. Operation Body Scanning Procedure Scanning the front body from the right shoulder and move done to the right ankle, from the right ankle to the left, and move up to the left shoulder. Scanning the back body form the head, move along the outline of the body, and over the left hand, the left leg, and move from the left ankle to the right ankle, then along the right leg and hand up to the right shoulder, from the neck move along the spine While scanning the ankle and feet area, holding the detector level to the ground about 1~2 inches above the surface. When a detecting is being done near the ground, reduce the sensitivity. ( Note: for good detecting effect, far from a very trashy ground). Sensitivity Adjustment: The sensitivity shall be adjusted when performance instability is observed or sound is produced when detecting human body without any metal stuff because the detection distance is less than the stipulated requirement or the sensitivity is too high. Rotate the Sensitivity Adjuster clockwise, until there is no sound from the buzzer, then counter-clockwise barely to the position where a sound is produced, then rotate for another half a circle clockwise, until the sensitivity meets the requirement. Detection distance: The sensitivity of the detector is determined primarily by the size, shape and composition of the object to be detected. Typical performance figures are given below: Object Sensitivity Pin: 30-60mm Coin: 75-100mm 6 inches knife: 160-180mm 64 model hand gun: 180-195mm Specification Power: 9V (6F22) standard or rechargeable battery (*optional ) Frequency: 25KHz Voltage: 9V (6F22) Weight: 400G (without battery) Unit size: 41×8×4.2 cm Operating Temperature: -15ºC to +60ºC Note: Be sure to switch off the power after use. If you are not going to use it for a while, take the battery out. When use rechargeable battery, duration of charging is 5~6 hours. Voltage of Charger: 9~12V (DC) (*Charger is optional ) Keep the metal detector dry and clean. Wipe off the detector by wet cloth, don't use the chemical detergent.

ID: MD0025

Technical St&ard: Detection Mode Magnetic Induction Sensitivity Lo: 20-30mm Hi: 30-40mm with a iron setting pin of Ø 0.7mm, length25mm Induction Regulation 2-Stage Detection Surface 25×50 (W×D)mm Alarming Mode Buzzer, Red Alarm Light Power 2×5# Alkaline Battery (AAA) Operating Current & Time Approximately 5-6mA (200 Working Hours) Size 160×55×45 (L×W×D)mm Gross Weight 210g Carton Size 170×75×50 (L×W×D)mm Notice When the instrument glows & sends sound feebly or continuously, it indicates that the batteries must be changed. The 2 5# alkaline batteries, if out of use for a long term in the metal detector, shall be taken out, otherwise the leakage would erode the interior of the detector. Please refrain from intensely shaking or dropping the instrument. The instrument is exclusively used for detecting ferromagnetic metal & iron-bearing alloy but not pure copper, aluminum, plastic, etc.

Introduction: magnetic metal detector, the latest hi-tech product which has reached the international st&ard, is provided with pleasant configuration, satisfying h& touch, high sensitivity, stable performance, conspicuous alarm light, clear sound notification & low power consumption. The instrument is also equipped with the advanced SMD microelectronic components & is manufactured from surface mount technology, serving as the most advanced micro metal detector. It is applicable for detecting the ferromagnetic impurities in knitted dress, food, medication & mineral products.

MD200 LED ( Green / red Color ) Audio Alert On /off Switch sensitive adjustment Characteristics: Use cycle-switch to switch sound alarm & hidden vibration alarm respectively Hight sensitive,detect ferror metal & non-ferror metal Sound & light alarm simultaneously Alkaline cell (7V-9V) can work over 40 hours & distance does not change Warn automatically when short of voltage

Detecting distance: black metal: color metal: 1/2pin 10mm aluminum&copper sheet 10mm model 64 pistol 150mm DIP14 IC(integrate circuit) 5mm 6 inches dagger 150mm Silver ring 1g 40mm 8mm(diameter) 40mm Lead brick 1g 30mm Sensitivity High: 10 ~ 15mm at Pin ( dia. 2 mm ) Low: 60 ~ 80mm at USD 25 Cent ( dia. 5 ~ 15 mm ) Operating frequency: 20 Khz Unit Weight: 272 g(including the battery) Unit Size: Length: 420mm width : 138mm height: 110mm Packing: package: 20PCS/CTN size: 460 x 305 x 582 mm weight: 11kg h&le measurement: 30X30mm Regulate the way: Manual Indicator: BZ , vibration motor Battery: A 9V battery (suitable for working for 40 hours normally) Control: Circulation switch (ON, OFF, a sound of light or mode of vibration) LED proves : LED red warning indicator lamp LED green insufficient indicator lamp of voltage of indicator lamp LED battery of power

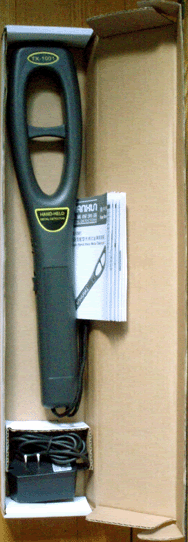

MD1001 Introduction: The MD-1001 is a high performance Hand Held Metal Detector designed to meet the exact requirements of the security industry. The special design of it's detecting area makes this model has very high sensitivity. Also, it is easy use, durable material, fine workmanship, and portable. Typical uses will include body search for offensive weapons in crowd control, airport and border security, checking parcels and letters for metal objects and anywhere that hidden metal needs to be detected. It can be charged and has powerful functions, low battery indicator, LED with buzzer or viberation alarm. It is a good helper of security detecting. Function: Stramlined, elegant appearance, super sensitivity. detect all kinds of metal: ferrous and non-ferrous metal. 2 kinds of alarm method: buzzer & LED alarm; viberation & LED alarm. adjustable sensitivity, easy use low battery indicator / Charge Lamp give you a timely alert After installing 9V chargeable battery in the battery compartment, you can charge the device directly. Sensitivity: Object Sensitivity Pin 30-60mm One coin 75-100mm 6 inches knife 160-180mm 64model hand gun 180-195mm Specification: Power: 9V (6F22) standard or rechargeable battery (*Optional) Frequency: 25KHz Voltage: 9V (6F22) Weight: 225G (without battery) Size: 37.5×7.5×3.5 cm Operating Temperature: -15°C to +55°C Packing: Package: 36PCS per carton Gross Weight: 15kg Size: 54×54×24cm

25PCs per Carton Packing size: 53×51×29 cm Gross weight:12KG

MD3000A Super Hand Held Security Metal Detector can detect metal objects hidden in human or baggage, such as pistols, cutters, jewelry and electrical components, and so on. and it is attractive appearance, lightweight and portable, simple operation, overpressure and tamper resistant, which is ideal product to inspect the illegal articles. Instruction MD3000A is adopted a large-scale CMOS integrated circuits, composed with ultra-micro-component, with dual-harmony sound and vibration alarm, and accompanied with 10 group dynamic high-brightness LED alarm. Higher sensitivity, more accurate alarm, long time for continuous working. The cover is casted with ABS engineering plastic, nice craft and light weight, easy and faddish to be carried. Application: It is mainly used in security inspection such as airport, station, customs, harbor, stadium (gymnasium), public security, frontier guard, safeguard organizations, testing and detection for precious metal (e.g. used in bullion crafts factories, electronic component factories), security inspection in mass assembly and other circumstances requiring security inspection. Main Features: Light weighted, big surface area on the detecting sensor enables a quick detecting process Alarms for various metals Rigid for tough service, no damage through free dropping at one meter altitude Accepting either normal battery or rechargeable battery Two kinds of alarm ways: audio-visual and vibration Outstanding Performance/Price Ratio Object Sensitivity belt holster Pin 30-60 mm One coin 75-100 mm Six inch knife 160-180mm 64-style pistol 180-195mm Specifications: Frequency: 25 KHz Work Voltage: 9V(6F22) N.W for UNIT: 200G (without battery) Size for Unit: 13.7×1.7×1.18 inch Work Temp. : -15°C to +55°C Power: 9V Standard or Rechargeable Battery (optional parts)

SuperWand Function features Slender design provides 360° Plus protection coverage Detection capability for all ferrous and nonferrous metallic items. Easy and convenient to use with one-touch button and three-color LED display. Ergonomic grip fits comfortably in every hand Choice of clear audible or silent vibrate/LED alarm signal. Optimum sensitivity with automatic retuning

Specifications MD3003C Operating Frequency: 95kHz Audio Frequency: 2kHz LED Indicators: Red Light - Alarm Green Light - Power On Amber Light - Low Battery Warning Alarm Signal Indicators: Audible - Speaker with Red LED Silent - Vibrator with Red LED Controls: 3-way Switch ON (Speaker/Light) OFF ON ( Vibrator/Light ) Battery: Single 9 volt Dimensions: Width: 8.3cm Weight: 0.45kg Length: 48.3cm Optional Accessories: Rechargeable battery Battery charger 110v or 220v Belt holder Warranty: 2 years

Red, green and yellow LED, indicating working status in a simple and plain way

Comfortable hand-feel is a result of design following ergonomics principle, giving operator unique feeling

3 mode personalized design is available, vibration, buzzer and switch, with sunken slot in switch, providing easy application
