MD2008P
Portable Telescopic wireless Bomb Detection Kit is a self-contained, lightweight pole camera for inspecting hard to reach or dangerous areas for potential security hazards or breaches. Used in: Army, Defence Forces, Police
It can be applicable in the dangerous & complicated surroundings, like high-altitude working. It¡¯s easy operated and powered by high capacity Li-battery with 8-10 hours continuous working time.
Features:
High brightness LED/IR offers long visible range up to 8 meters. Moreover, it offers high definition video and good performance.
5.0 inch TFT LCD with audio-video colour display, conforming to ISEC stadards with remote and ear phone.
Our DVR memory up to 32GB, users can delete and rerecord video.
120V / 240V AC charger with North American (US) plug and Europlug adapter for international use.

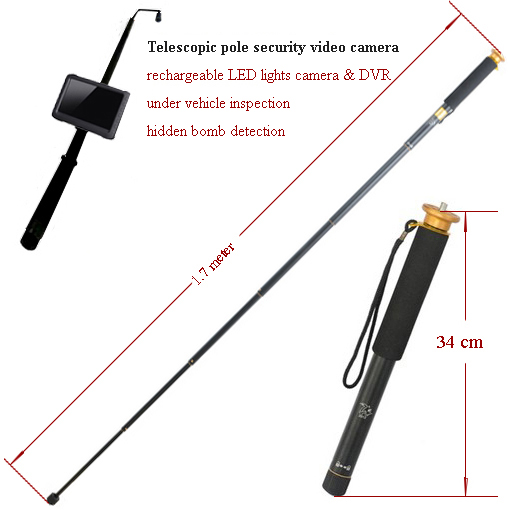

The expandable pole goes from 13 inches to over 5.5 feet ( 60 feet option )

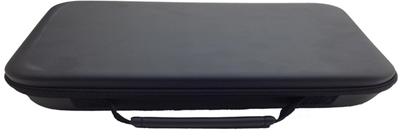

The entire system fits inside a compact carrying case. The camera head has built in variable LED illuminators providing crisp color images even in dark or low light situations.
All controls are configured on the large (5 inch diagonal) color wireless DVR, providing a quick and easy to use inspection system out of the case. The display monitor also provides a video output for other uses (e.g. video recording).
|
|
Most advanced versatile, portable, trusted wireless security detection equipment !
It is excellent for examining drop-ceilings, under vehicles, around corners, or behind immovable objects. eg.: explosives, narcotics, weapon searching under and over vehicles, over-hidden areas, under almirah, luggage, holes, etc where accessibility is risky,
tough and illumination low /Nil. Also an ideal tool for bomb disposal, counter-terrorist operations etc.
Must for:
Airports, VIP security, Parliament, Important strategic buildings, car parkings, Hotel, Shoping Malls etc.
Fool Proof Solution for checking, especially in night. Vision in complete darkness upto 8 meteres.Completed visibil detection using minimum risk.

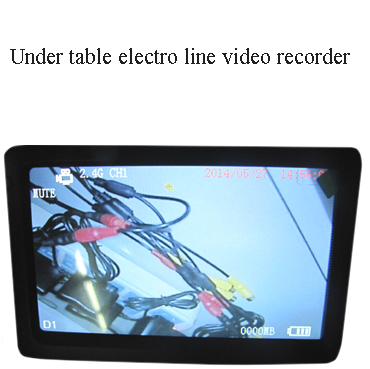

Digital Visual
Receiver (DVR):
| High brightness LED/IR offers long visible range up to 8 meters
|
|
| Auto
and
home
Charger
input: 120V
to
240V
output: 5 DV
|
|
| Display:
| 5 inch HD screen (800X480pix) with audio-video colour display.
| Wireless Receiving£º
| Built-in 2.4G wireless receiving module.
| Channel Switch£º
| Supports manual & automatic switch between 8 channels.
| Antenna:
| Folding hidden external antenna assures excellent wireless receiving.
| Recording:
| Supports seamless cycle and continuous video from wired/wireless cameras
| Photo£º
| Supports function of taking pictures either from wired or wireless cameras.
| AV IN£º
| TV-IN [NTSC / PAL].
| AV OUT£º
| [NTSC / PAL].
| Battery£º
| Built-in 3200mAh high capacity Li-battery, which continuous record over 10 hours.
| Speaker:
| Built-in speaker of 1W.
| Storage:
| Supports up to 32GB TF card.
| Language:
| Supports multi-language.
| Supports Power-saving Mode:
| automatic shutdown, automatic off-screen.
| Automatic upgrade:
| Supports system automatic upgrade.
contact for the latest system program
| | | | | | | | | | | | | |

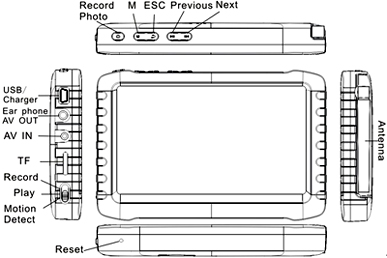

| Specification
| 5 inch HD Portable Wireless Mini DVR - Value
| Wireless Receiving
| Wireless frequency
| 2.4GHz¨C8 channelsCH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz.
Sensitivity-88dB

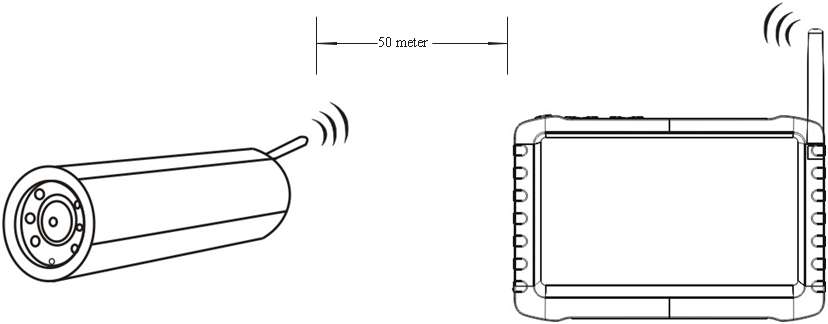

Receiving distance100 meters
| AV IN
| TV systemNTSC/PAL
Output voltage3.6-4.2 V
| HD 5-inch LCD screen
| Active area108mm(W)×64.8mm(H)
Resolution800×480 Pixel
Luminance for LCM200 cd/m²
| Cape clear 5-inch LCD screen
| Active area118mm(W)×62.8mm(H)
Resolution480×272 Pixel
Luminance for LCM)300cd/m²
| Video
| Resolution
| 720×576 / 640×480
| Video compress
| MPEG-AVI 30fps
| Play format
| MPEG-AVI
| Audio
| Frequency
| 20HZ-20KHz stereo
| Earphone Output
| Left: 20MW+ right 20mW ⌈16O⌉(suit to largest volume)
| Speaker
| 1W
| Photo
| Format
| JPG/JPEG
| Storage
| External SD card
| TF card 1GB-32GB(optional)
| 32GB recording time
| 10-32 hours
| 1GB photos
| 15625pcs
| Operating system
| PC
| Windows & Mac OS
| Port
| USB 2.0
| Language
| Multiple
| Power
| Voltage
| DC 5V
| Current(receiving mode)
| 660MA
| Current( recording mode)
| 680MA
| Current(recording with off-screen mode)
| 340MA
| AC adapter
| DC 5V 2A
| Built-in battery
| Li-battery 3200Mah
| Standby time
| Wireless record
| ≥9.5 hours(off-screen); ≥5hours(on-screen)
| Wired record
| ≥12 hours(off-screen); ≥6hours(on-screen) ×LED camera not included.
| DVR Size (L×W×H)
| 131mm×86mm×18mm
| Net Weight (g): 205g
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
Features£º
This portable wireless inspection camera is our company newly-developed simple and convenient inspection instrument.
It¡¯s a new product combined the technology of electronics, optics and 2.4GHz wireless.
It¡¯s very small size and light weight, very convenient to carry; can be applicable in the dangerous & complicated surroundings,
like high-altitude working.
It¡¯s easy operated and powered by high capacity Li-battery with 1.5 hours continuous working time.
High brightness LED/IR offers long visible range up to 8 meters. Moreover, it offers high definition video and good performance.
If it works with our wireless, users can as inspect according to video, as record. Look over some recorded video repeatedly.
When the video is not satisfactory, users can delete it and rerecord. DVR memory is large up to 32GB.
It works with wireless USB receiver, users can view instant video in computer, and record, edit and print the inspection report.

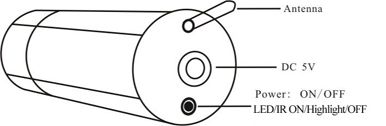

| Specification

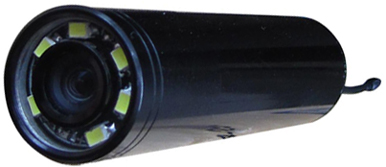

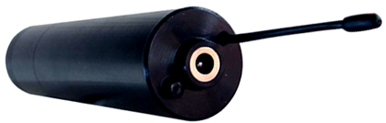

| WIRELESS INSPECTION CAMERA
| Frequency
| 2414Mhz(CH1)
|

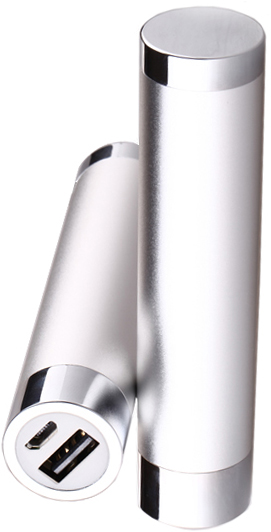

potable power bank
Size: Dia.20 x 94mm
Capacity: 2200mAh
Support working
over 8 hours
| | RF Output Power
| 50mW (300 feet in line of sight)
| Total Pixels
| PAL:720 X 576 NTSC:720 X 480
| Minimum Illumination
| 0.01Lux / F1.2
| Lens Focus
| 1-100cm (adjustable)
| View Angel
| 90¡ã
| Light Source
| LED
| 2200mcd x 6 Range of LED lamp: 5 meters
| IR/940nm
| 70mW x 6 Range of IR940 lamp: 5 meters
| IR/850nm
| 70mW x 6 Range of IR850 lamp: 8meters
| Li-battery Capacity
| 380MAH
| Working Time
| 1.5 hours
| Charge Time
| 1.5 hours
| Voltage
| DC 5V
| Current
| Lamp off:160mA Lamp on: 260mA Lamp highlight:300mA
| Weight
| 35g
| Size£¨DXL£©
| 20mm X 84mm
| | | | | | | | | | | | | | | |
Accessories:

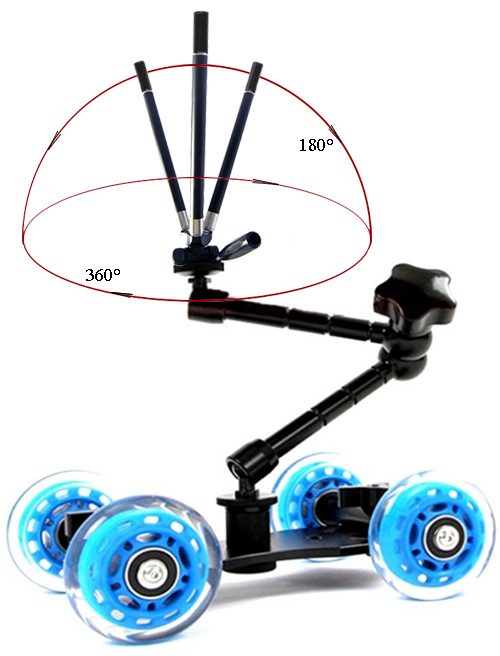

remote moveable plat (option)
|
|
|
|
|
|
|
1- 6 meters telescopic pole (option)
|
| |
|
